Scissor Lift – Rough Terrain 40ft

Get a Quote
Spec Sheet

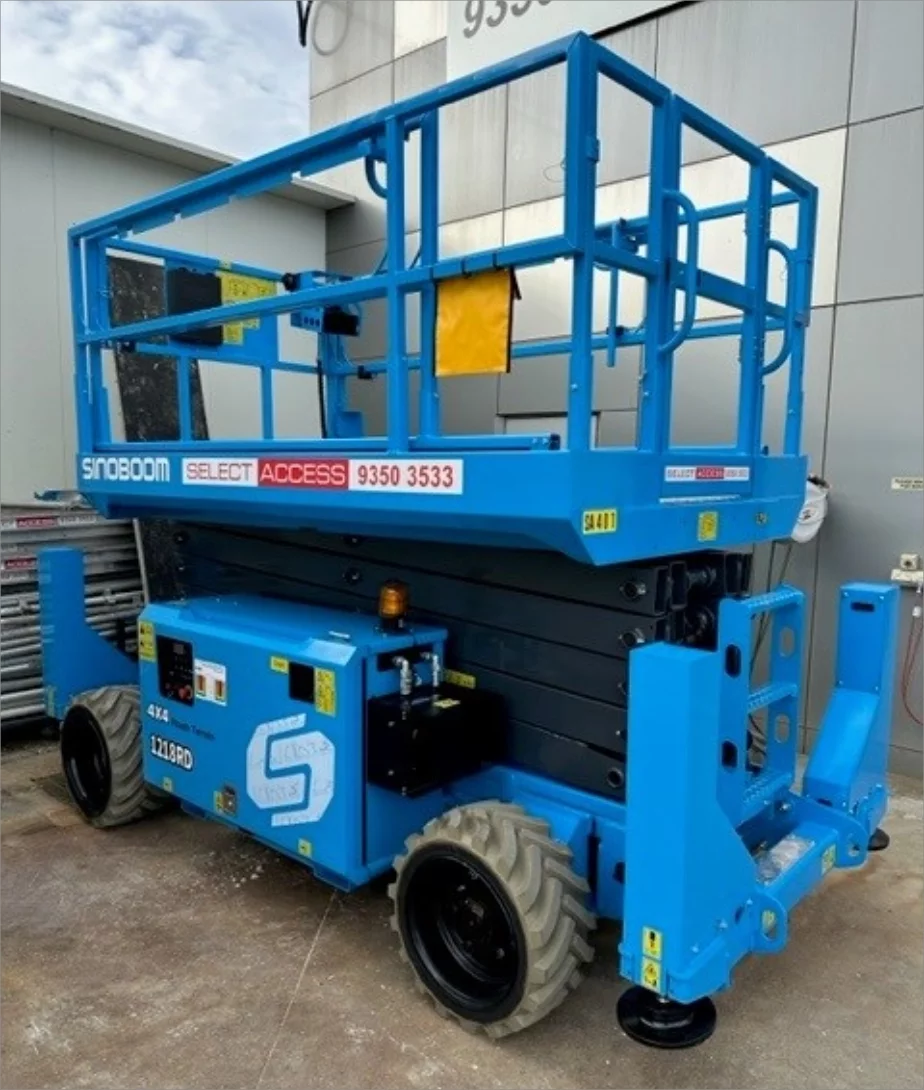

Scissor Lift – Rough Terrain 40ft

4-wheel drive and 2-wheel steering
DTC system
Floating device
Outriggers
Solid tyres
Overload sensing system
Kubota engine

DimensionMetricUS
Max working Height14.2m46’7”
A Max Platform Height12.2m40’
B Max Horizontal Extension1.5m4’11”
C Length-Stowed (Outriggers/Without Outriggers)3.77m/3.29m12’4”/10’9.5”
D Width - Stowed1.76m5’9”
Height - stowed
Rail Folded2.1m6’11”
E Rail Unfolded2.73m8’11.5”
F Wheelbase2.28m7’6”
Ground Clearance0.22m9”
Platform Dimensions (LxWxH)2.8m×1.6m×1.1m(9’2”×5’3”×3’7”)
PerformanceMetricUS
Platform Allowable Occupants (Indoor)3 persons
Platform Allowable Occupants (Outdoor)2 persons
Platform Capacity365kg805lbs
Drive Speed-Stowed5.6km/h3.5mph
Drive Speed-Raised0.48km/h0.3mph
Elevation Time(Unloaded)55s~65s
Descent Time (Unloaded)45s~50s
Gradeability35%
Turning Radius (Inside/Outside)2.11m/4.6m6’11”/15’1”
Tilt Rating(Front to Back)3°
Tilt Rating (Side to Side, Outrigger Tele-In/Tele-Out)2°/0.8°
Max Outrigger Levelling(Front to Back)5.3°(front)/4.2°(back)
Max Outrigger Leveling(Side to Side)11.7°
Tyres-solid26×12-16.5
PowerMetricUS
Power SourceKubota D1105-E4B-EU-X1
Drive Mode4WD×2WS
Fuel Tank Capacity-Diesel100-240V AC
Charger Output48L10.6gal
Hydraulic System Capacity95L20.9gal
WeightMetricUS
Weight(Outriggers/Without Outriggers)5,180kg/ 4,720kg11,420lbs/ 10,406lbs
Standard ComplianceISO/CE/ANSI/CSA/AS/CU-TR
