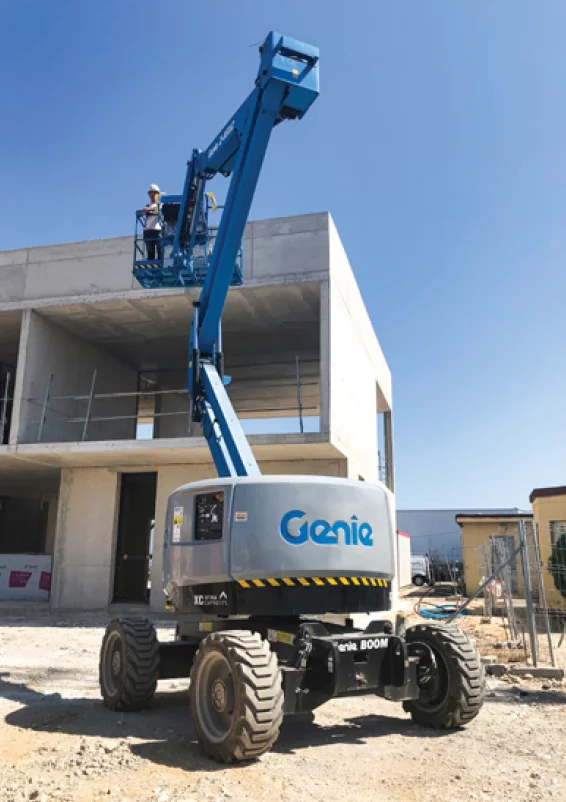

Knuckle Boom – Rough Terrain 45ft

Lift Tools Productivity Tools

Lift Connect Telematics

Tech Pro Link Handheld Device

Measurements	Metric	US
Working height max.(1)	15.86 m	51 ft 9 in
Platform height max.	13.86 m	45 ft 9 in
Horizontal reach max.	7.55 m	24 ft 9 in
Up and over clearance max.	7.44 m	24 ft 5 in
A Platform length	0.76 m	2 ft 6 in
B Platform width	1.83 m	6 ft
C Height - stowed	2.25 m	7 ft 4 in
D Length - stowed	6.65 m	21 ft 10 in
EWidth	2.29 m	7 ft 6 in
FWheelbase	2.03 m	6 ft 8 in
G Ground clearance - center	0.37 m	14.8 in
Productivity
Lift capacity max. - unrestricted	300 kg	660 lb
Lift capacity max. - restricted	454 kg	1,000 lb
Platform rotation	160°	160°
Jib length	1.52 m	5 ft
Vertical jib rotation	133°	133°
Turntable rotation	355°	355°
Turntable tailswing	0 cm	0 in
Drive speed - stowed(2)	7.24 km/h	4.5 mph
Drive speed - raised	0.98 km/h	0.61 mph
Gradeability - stowed(2)	45 %	45 %
Tilt sensor activation (front to back/side to side)	4.5° / 4.5°	4.5° / 4.5°
Turning radius - inside/outside	1.68 m / 4.50 m	5 ft 6 in / 14 ft 9 in
Tires (foam-filled)	315 / 55 D20	315 / 55 D20
Power
Power	Diesel	Diesel
Auxiliary power unit	12 V DC	22 gal
Hydraulic tank capacity	83 L	17 gal
Fuel tank capacity	64 L
Weight(3) and Floor Loading(4)
Weight	7,421 kg	16,360 lb
Tire contact pressure	552 kPa	80 psi
Occupied floor pressure (tires)	11.08 kPa	231 psf
Sound and Vibration Levels
Sound Pressure level (ground workstation)	87 dBA	87 dBA
Sound Pressure level (platform workstation)	82 dBA	82 dBA
Vibrations	2.5 m/s2	8 ft 2 in/s²
